BFS-110 |
|
Description
Specification

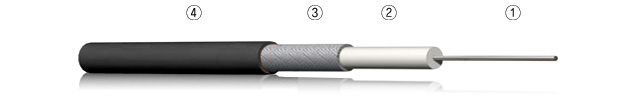

CONSTRUCTION
| NO | ITEM | MATERIAL | DIAMETER | REMARK |
|---|---|---|---|---|
| 1 | CENTER CONDUCTOR | SPCW | 0.51 ± 0.02mm | |
| 2 | DIELECTRIC | PTFE | 1.65 ± 0.05mm | SOLID |
| 3 | OUTER SHIELD | TC | 2.10 ± 0.05mm | TUBE/100% COVERAGE |
| 4 | Jacket(Optional | FEP | 2.50 ± 0.1mm | Black |
비고
| SPCW | PTFE | TC | FEP |
|---|---|---|---|
| Silver Plated Copper clad steel Wire | Polytetrafluoroethylene | Tinned Copper | Fluorinated Ethyulene Propylene |
ELECTRICAL DATA
| ITEM | SPECIFICATION | ||
|---|---|---|---|
| Operating frequency | Max. 6.0 GHz | ||
| Test Voltaqe | 2000 Vrms | ||
| Capacitance | Max. 105 pF/m | ||
| Characteristic impedance | 50 ± 3Ω | ||
| Approx. weight | 15.1 kg/km | ||
| Operating Temp | -55℃ ~ 200℃ | ||
| Maximum Attenuation | 0.5 GHz | 0.85 dB/M | |
| 3.0 GHz | 2.46 dB/M | ||
| 6.0 GHz | 3.50 dB/M | ||
