MINI
Description MINI CABLE
50 Ohm
Specification

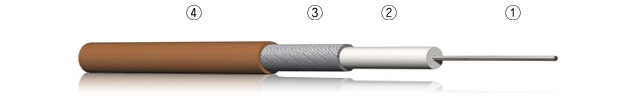

CONSTRUCTION

0.81

NO ITEM MATERIAL DIAMETER REMARK
1 CENTER CONDUCTOR SPCW 0.15 ± 0.02mm Strand 7/0.05mm
2 DIELECTRIC FEP 0.40 ± 0.03mm SOLID
3 OUTER SHIELD TC 0.65 ± 0.15mm
4 Jacket FEP 0.81 ± 0.10mm WHITE

1.13

NO ITEM MATERIAL DIAMETER REMARK
1 CENTER CONDUCTOR SPCW 0.24 ± 0.02mm Strand 7/0.08mm
2 DIELECTRIC FEP 0.68 ± 0.03mm SOLID
3 OUTER SHIELD TC 0.90 ± 0.15mm
5 Jacket FEP 1.13 ± 0.10mm GY/BK

1.30/S

NO ITEM MATERIAL DIAMETER REMARK
1 CENTER CONDUCTOR SPCW 0.24 ± 0.02mm Strand 7/0.08mm
2 DIELECTRIC FEP 0.68 ± 0.03mm
3 OUTER SHIELD TC 0.90 ± 0.15mm
4 Jacket FEP 1.30 ± 0.10mm GY/BK

1.32/D

NO ITEM MATERIAL DIAMETER REMARK
1 CENTER CONDUCTOR SPCW 0.24 ± 0.02mm Strand 7/0.08mm
2 DIELECTRIC FEP 0.68 ± 0.03mm SOLID
3 OUTER SHIELD TC 1.05 ± 0.15mm
3 FEP TC 1.32 ± 0.10mm GY/BK

비고

SPCW TC SPC FEP
Silver Plated Copper clad steel Wire Tinned Copper Silver Plated Copper Fluorinated Ethylene Propylene

ELECTRICAL DATA

ITEM SPECIFICATION
Inner conductor resistance Max. 759 Ω / km (20℃)
Insulation resistance Min. 1500 MΩ /km (20℃)
Voltaqe rating 250 Vrms
Capacitance Nom. 98 pF/ft (1KHz)
Characteristic impedance 50 ± 5Ω
Operating Temperature range -40 ~ 160
Approx. weight 8.4 kg/km
Maximum Attenuation 1.0 GHz 2.5 dB/m
2.0 GHz 3.3 dB/m
3.0 GHz 3.9 dB/m
Dielectric strength Dielectric core: AC 1.5KV for 0.15sec Spark test
Jacket: AC 1.5KV for 0.15sec Spark test
No breakdown at AC 500V for 1min Outer conductor To inner conductor
